Human-Powered Submarine

Cygnus IV & Rivershark

European International Submarine Races 2022 · HSRW Submarine Team

Rivershark in action during training and races

Cygnus IV is a single-seat human-powered submarine designed for the 2022 European International Submarine Races (eISR). Built by the Rhine-Waal University (HSRW) submarine team, it combines a transparent PET-G hull, aluminium wireframe, biomimetic MirageDrive propulsion, and a crank-rocker transmission — with sustainability and innovation as core design aims.

Because of limited time, the proven Rivershark Mod II was upgraded to Rivershark Mod III for pilot training and as a race backup. Rivershark first competed in 2013 and won best biomimetic and best female pilot awards at eISR 2018.

Cygnus IV — Hull & Frame

The hull is made from recyclable transparent PET-G panels, each vacuum-formed over CNC-machined moulds and bolted together for modularity. A lightweight aluminium wireframe reinforces the hull against impact and supports internal components. The design targets a fineness ratio of 0.22 (70 cm height, 315 cm length) to balance skin friction and pressure drag.

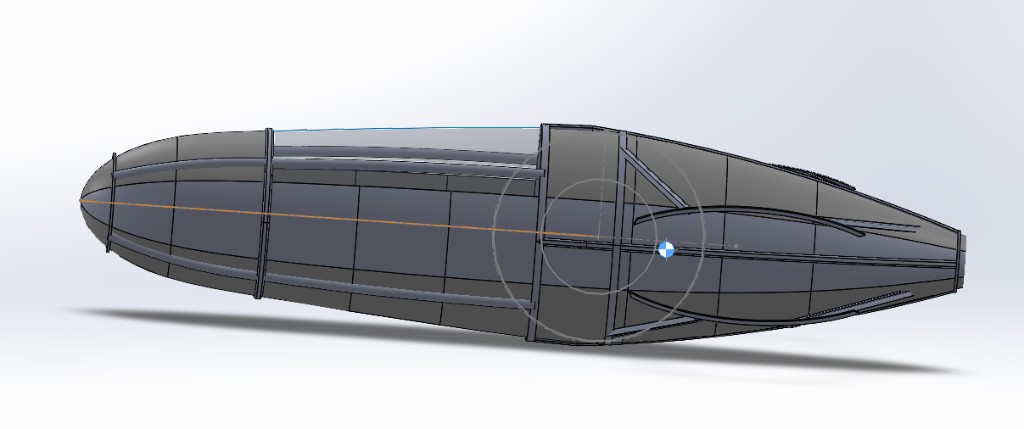

Cygnus IV hull CAD model — Hull CAD model — modular PET-G panels with pilot hatch

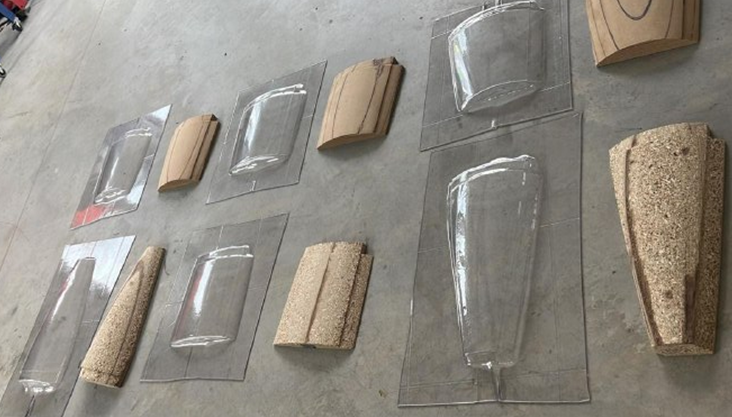

Vacuum forming moulds and PET-G panels — CNC moulds and vacuum-formed PET-G hull sections

Biomimetic Propulsion

Instead of a conventional propeller, Cygnus uses four pairs of Hobie MirageDrive fins that simulate penguin "aquatic flight" — thrust generated by lift on oscillating hydrofoils rather than drag. Compared to Rivershark's two fin pairs and 196° oscillation, Cygnus targets ~310° rotation with fins phased 90° apart so thrust is continuous while one pair turns over.

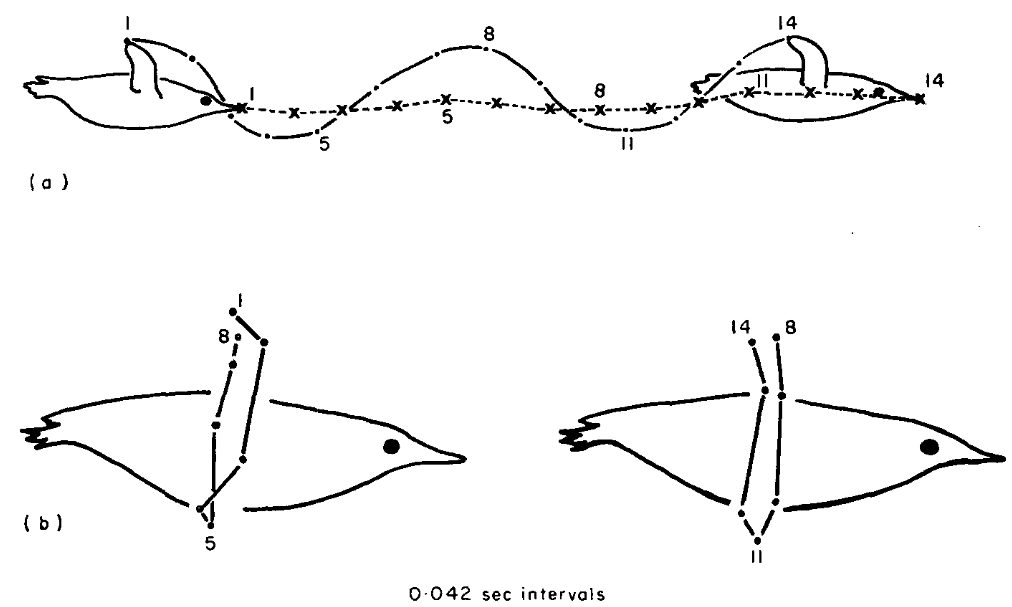

Penguin wingbeat cycle diagram — Penguin wingbeat cycle — inspiration for aquatic flight propulsion

Transmission System

Pedal rotation is converted to oscillatory fin motion through a crank-rocker four-bar linkage, selected over half-bevel gears, rack-and-pinion, and coaxial cylinder mechanisms for reliability and ease of manufacturing. Bicycle pedals drive a chain to a central shaft; crank-rockers in each outrigger produce ~315° of fin oscillation via sprockets and cable pulleys.

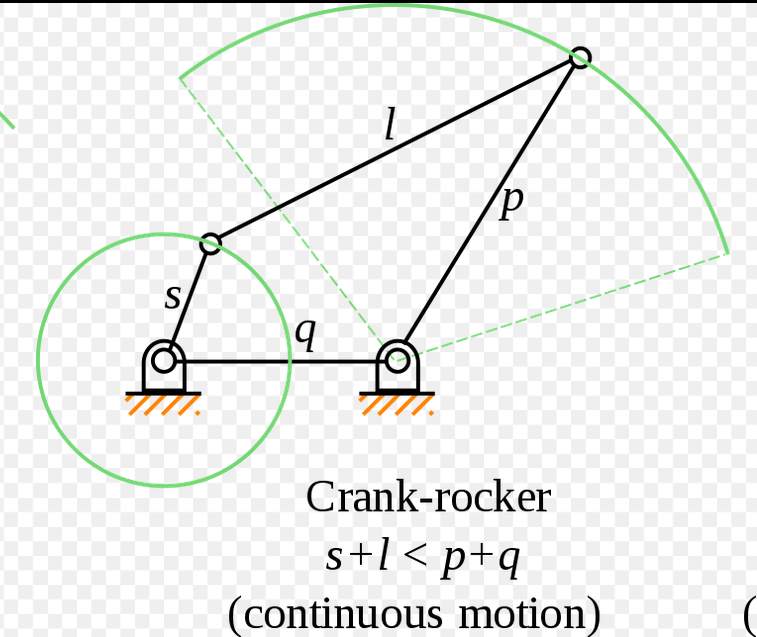

Crank-rocker mechanism diagram — Crank-rocker linkage — continuous rotation to oscillatory motion

Control & Safety

Cross-plane rudders and NACA 0021 elevators provide yaw and pitch control, actuated by linear actuators with Arduino-based electronics. A dead-man-switch releases a safety buoy at the stern for emergency recovery. Twin-keel outriggers provide buoyancy, stability, and internal routing for transmission shafts.

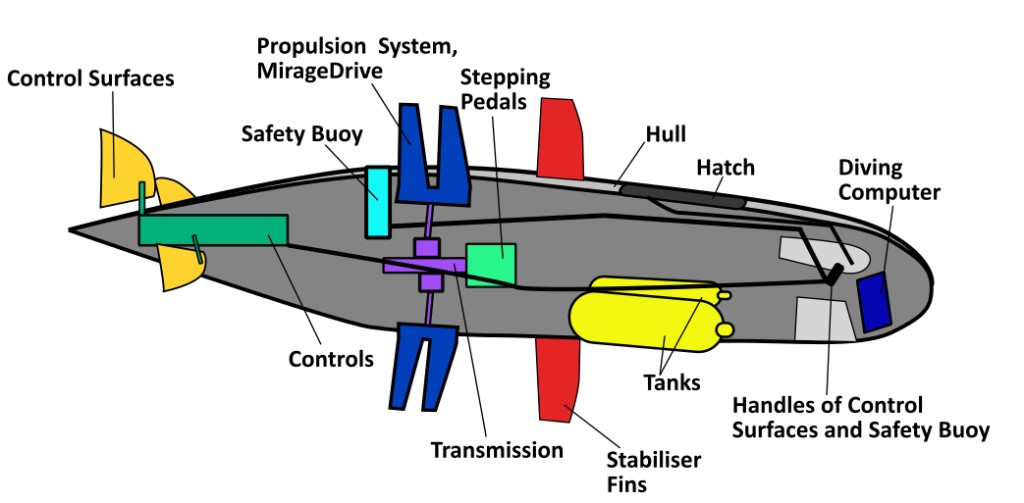

Cygnus IV general arrangement — General arrangement — pilot, propulsion, controls, and safety systems

Computational Fluid Dynamics

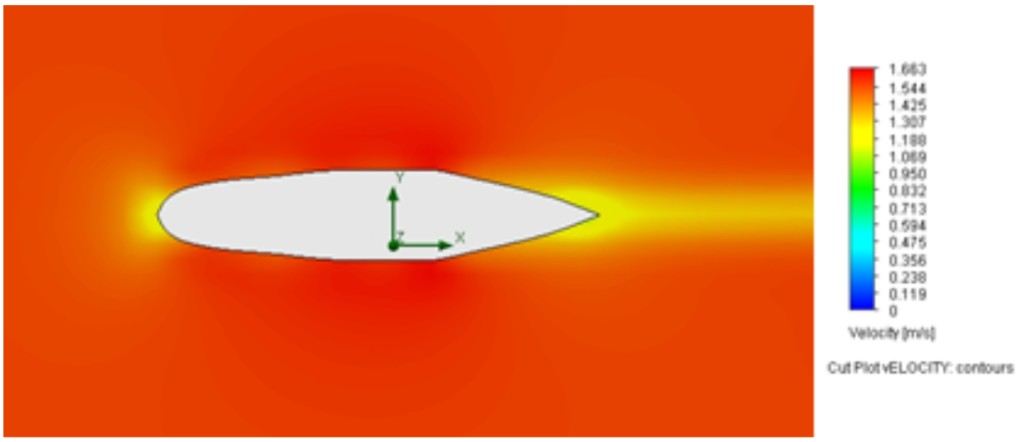

CFD analysis was used to evaluate hull hydrodynamics and identify areas of high pressure drag and wake formation, guiding iterative refinement of the nose and tail profiles.

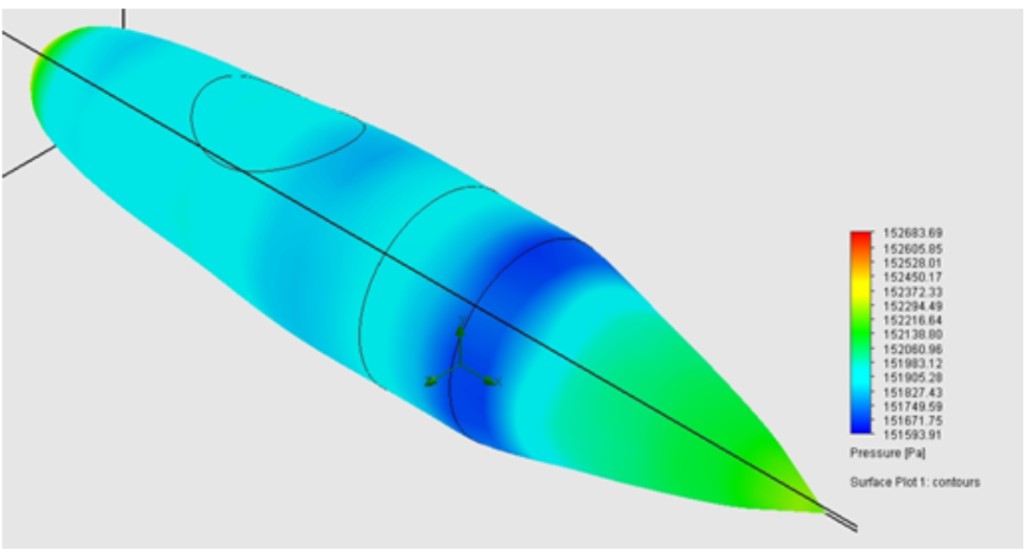

CFD pressure contours — Pressure distribution

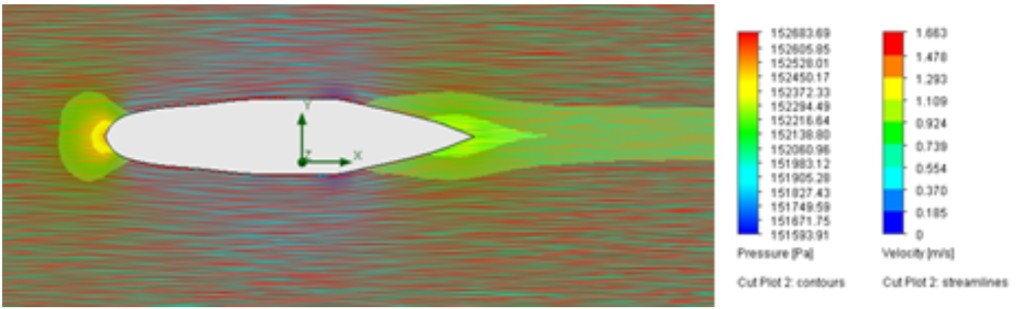

CFD streamlines — Streamlines and pressure

Rivershark Mod III

While Cygnus IV was under development, Rivershark was upgraded for training and as a competition backup:

Improved foam attachment for neutral buoyancy trimming
New stabiliser fins and hydrofoil-profile control surfaces
Redesigned hatch opening system for reliable access from inside
Stepping pedal motion retained after testing cycling (insufficient space for full pedal rotation underwater)
Enlarged safety buoy with dead-man-switch release meeting race standards

Rivershark during a race

Specifications (Cygnus IV)

Length: 2.90 m · Dry weight: ~65 kg
Hull volume: ~44,350 cm³ · Wetted area: ~140,000 cm²
Propulsion: 4 × MirageDrive fin pairs on outriggers
Target speed: 4 kn
Materials: PET-G hull, aluminium frame, steel/aluminium transmission

News & Media

Download

Full design report (PDF)

Team & Acknowledgments

Project supervised by Prof. William Megill. Supported by FabLab.blue Kleve, FabLab Kamp-Lintfort, and sponsors TÜV Nord AG, Industriepark Kleve, and Förderverein HSRW Campus Kleve.
