OLSK 3D Scanner V2

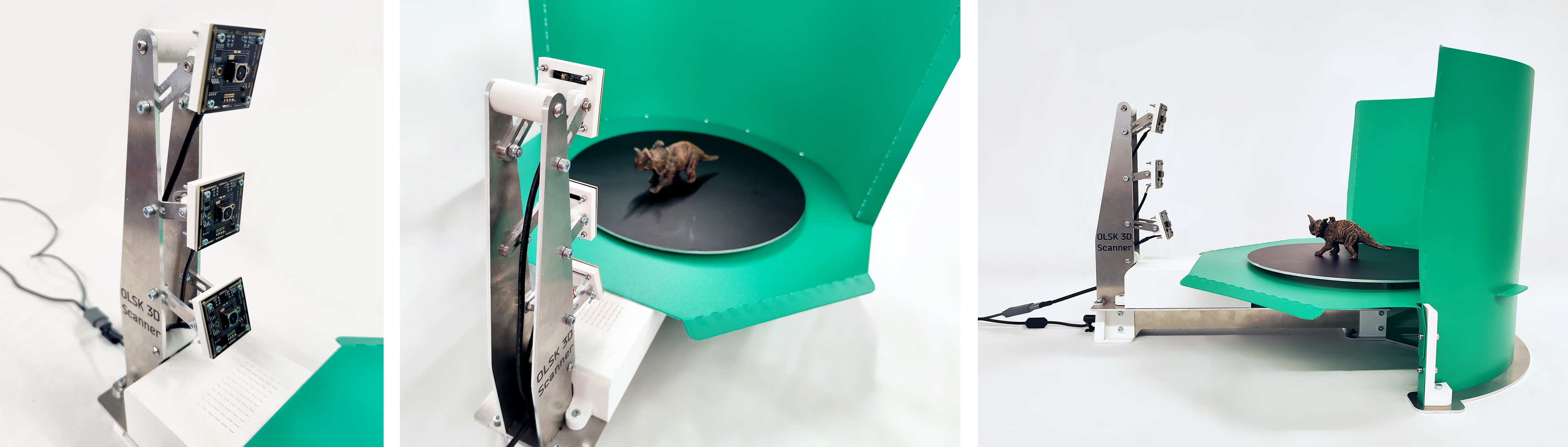

The OLSK 3D Scanner is an open source 3D scanner with a turntable and three cameras for faster capture of 3D models. With a simple, compact design, it can be replicated and assembled in fab labs, schools, or at home. A USB connection lets users process scans with custom software, and camera positions can be adjusted for different object sizes and shapes.

Specifications

• 3 × USB camera modules with Sony IMX179 sensor and autofocus
• 3 mm CNC-milled aluminum frame
• GT2 10 mm belt drive
• NEMA 17 stepper motor

Software

I co-designed the scanner software with Sulaiman Tanbari:

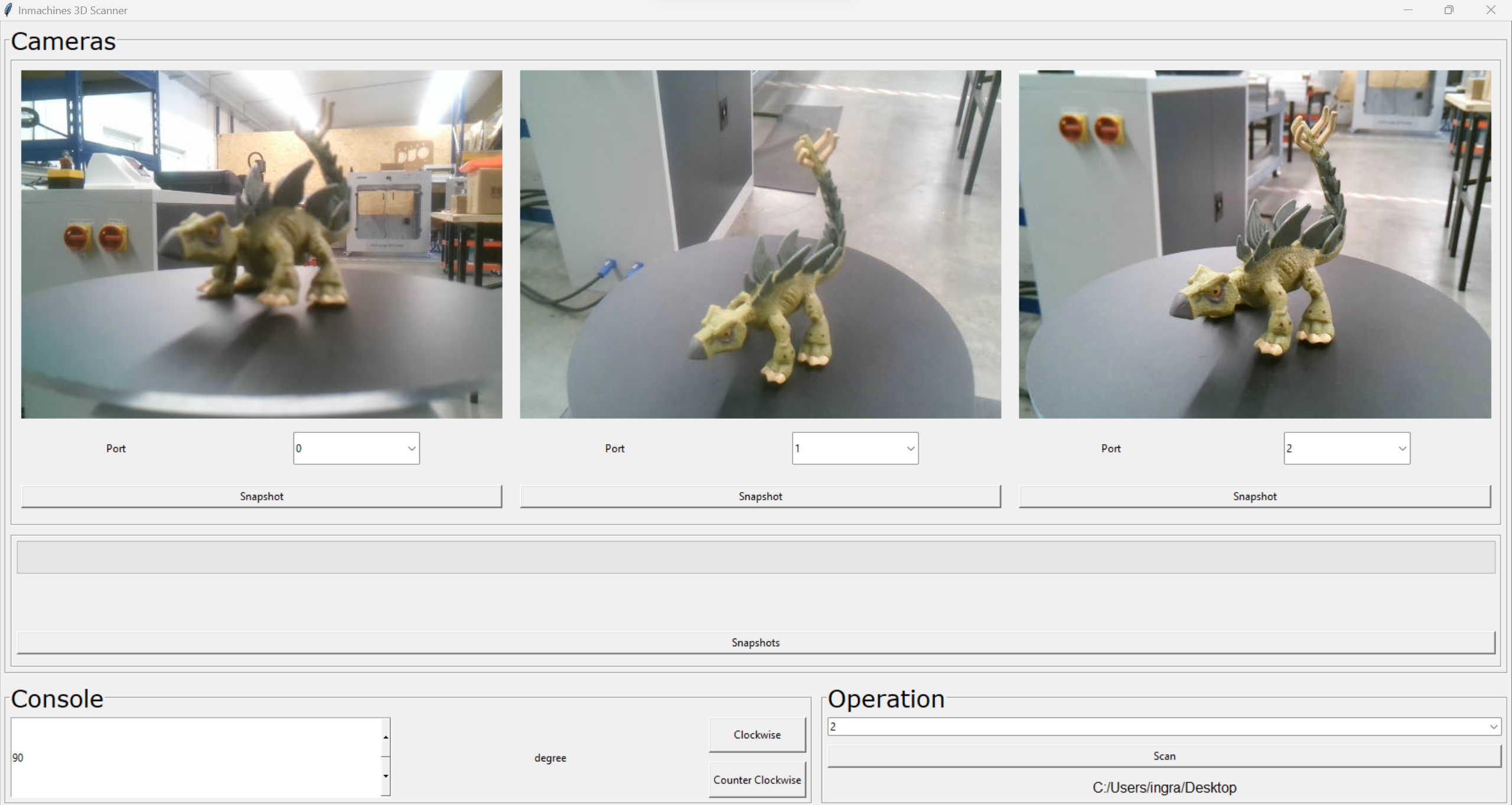

• Laptop side — receives images from three cameras and controls the turntable
• PCB side — firmware to drive the scanner mechanics

Project Files

• GitHub repository
• CAD files
• Software
• Bill of materials
• Assembly workbook (PDF)

Credits

Designed and built by InMachines Ingrassia GmbH as part of the Open Lab Starter Kit (OLSK) for the Dtec project at Fab City Hamburg.

Machine design: Wilhelm Schütze, Alberto Porri
Software design: Marcello Tania, Sulaiman Tanbari

License

Hardware, CAD, PCB, and BOM: CERN Open Hardware Licence v2 (Weakly Reciprocal). Documentation and media: CC BY-SA 4.0.
